XY-EF series industrial scale

Product Category

★ Large range and high precision
★ Spray steel scale frame
★ Large size stainless steel table
★ LED(Red)
★ AC and DC power supply
★ Tare function/Counting/Unit conversion(kg/lb)
★ Overload alarm/Undervoltage alarm/Level indicator
★ Option:Interface/Printer

Inquiry

Product Description

Function

★ Large range and high precision

★ Spray steel scale frame

★ Large size stainless steel table

★ LED(Red)

★ AC and DC power supply

★ Tare function/Counting/Unit conversion(kg/lb)

★ Overload alarm/Undervoltage alarm/Level indicator

★ Option:Interface/Printer

Product specifications

XY-E/F specifications
Model	Capacity	Readability	Repeatability	Linearity	Pan size	Stable Time
XY60E	61kg	10g	±20g	±30g	400x500mm	≤2S
XY100E	110kg	10g	±20g	±30g	400x500mm	≤2S
XY150E	160kg	10g	±20g	±30g	400x500mm	≤2S
XY200E	210kg	10g	±20g	±30g	400x500mm	≤2S
XY300E	310kg	10g	±20g	±30g	400x500mm	≤2S
XY500E	510kg	50g	±100g	±150g	600x800mm	≤2S
XY60F	61kg	1g	±2g	±3g	400x500mm	≤2S
XY100F	110kg	1g	±2g	±3g	400x500mm	≤2S
XY150F	160kg	1g	±2g	±3g	400x500mm	≤2S

Product application

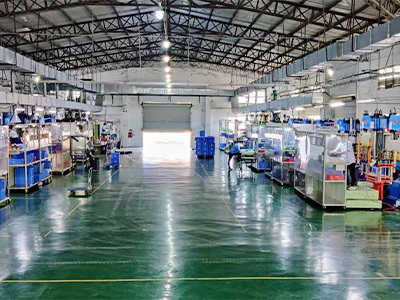

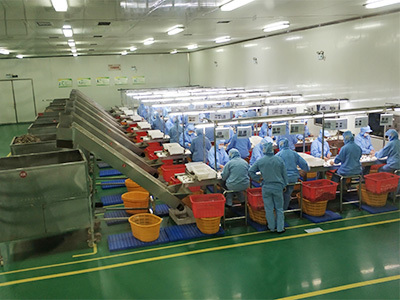

Warehousing logistics	Major factories	Batching site	Production workshop

Customized Service

Confirm customized information

Confirm Quotation

Sign the contract

Produce Sample order

Confirm sample

Produce Bulk order

Packing and Shipping

Confirm Receipt of Order
